Fa110 SERIES

Fa110 SERIES 分类: [Fa SERIES]

￥0.00 ￥0.00
The Fa series is a built-in two-way full-range audio system launched by BUTTERFLY. The Fa series speaker systems feature extremely high quality and product consistency. From hardware development to software programming, and from the selection of electronic components to speaker assembly, high-precision production methods and strict quality control processes are applied to ensure the stability and durability of the products. They are designed for various speech and music sound reinforcement applications, and are also suitable for various fixed installation scenarios.
The Fa-110 consists of a direct-radiating 10-inch mid-low frequency paper cone unit and a 1.75-inch (44.4mm) high-frequency titanium diaphragm compression driver, with a coverage angle of 90°×75° and a maximum peak sound pressure level of 129dB. It is integrated with a built-in crossover that does not use attenuation resistors, thus avoiding the problem of resistor heating under high-power conditions and eliminating the impact of attenuation resistor inductance on high-frequency bands. Meanwhile, it increases the damping factor of the system and the efficiency of the speaker.
The elaborately designed rapidly expanding high-frequency horn adjusts the time difference and corrects the phase angle difference between the high-frequency and low-frequency units, ensures a smooth wavefront, provides precise beam pattern control, and eliminates interference in the area near the crossover point.
The Fa-110 is equipped with 2×Neutrik NL4MP connectors, which are used for hanging and angle adjustment in fixed installation and mobile applications. The surface is sprayed with wear-resistant black matte polypropylene coating. A flush-mounted handle is installed on the back of the speaker for easy transportation. The rear terminal board is fitted with two parallel SPEAKON sockets for convenient connection, and the black perforated iron mesh protects the speaker units.



Fa112 SERIES

Fa112 SERIES 分类: [Fa SERIES]

￥0.00 ￥0.00
The Fa series is a built-in two-way full-range audio system launched by BUTTERFLY. Boasting exceptional quality and product consistency, the Fa series speaker systems utilize high-precision production methods and rigorous quality control processes throughout every stage—from hardware development and software programming to the selection of electronic components and speaker assembly—ensuring product stability and durability. Designed for various speech and music sound reinforcement applications, they are also suitable for diverse fixed installation scenarios.
The Fa-112 comprises a direct-radiating 12-inch mid-low-frequencypaper cone unit and a 1.75-inch (44.4mm) high-frequency titanium diaphragm compression driver, with a coverage angle of 90°×75° and a maximum peak sound pressure level of 132dB. It integrates a built-in crossover that eliminates the use of attenuation resistors, thus avoiding resistor heating issues under high-power conditions and eliminating the impact of attenuation resistor inductance on high-frequency bands. Additionally, it enhances the system's damping factor and speaker efficiency.
The meticulously designed, rapidly expanding high-frequency horn adjusts the time difference and corrects phase angle discrepancies between the high-frequency and low-frequency units, ensuring a smooth wavefront. It provides precise beam pattern control while eliminating interference in the area near the crossover point.
The Fa-112 is equipped with 2×Neutrik NL4MP connectors, facilitating hanging and angle adjustment in both fixed installations and mobile applications. Its surface is coated with a wear-resistant black matte polypropylene finish. A flush-mounted handle is installed on the rear of the cabinet for easy transportation, and the rear terminal board features two parallel dedicated sockets for convenient connection. A black perforated steel mesh protects the speaker units.



Fa118SUB SERIES

Fa118SUB SERIES 分类: [Fa SERIES]

￥0.00 ￥0.00

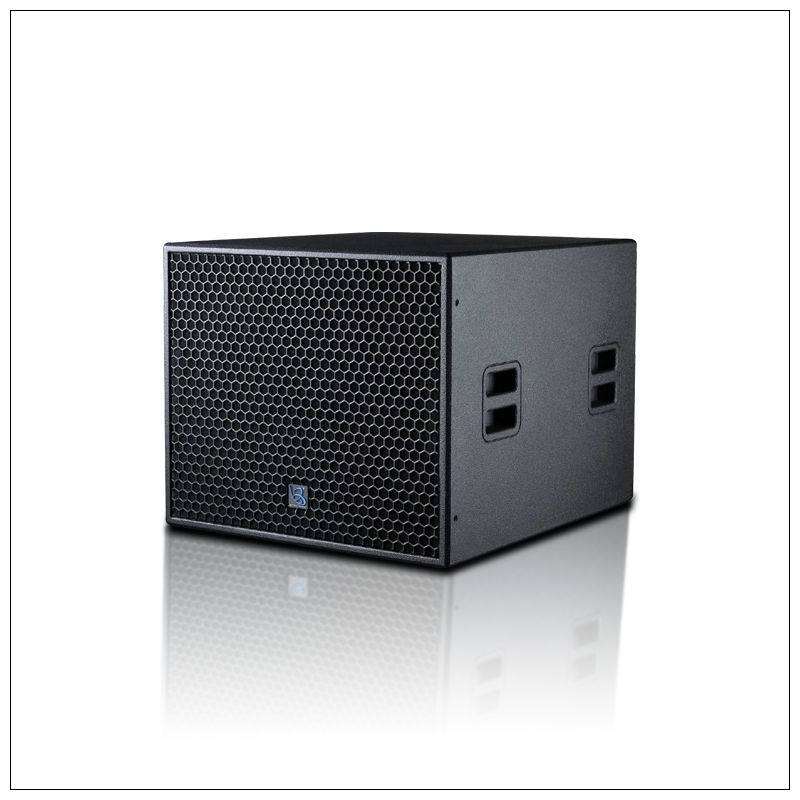

The Fa-118SUB adopts a high-quality cabinet paired with a slot-and-wedge joint process, which enhances the structural sturdiness of the cabinet. Its exclusive Italian reinforcement technology effectively reduces unnecessary resonance and harmful sound coloring of the cabinet, resulting in cleaner sound and higher overall output efficiency.
The Fa-118SUB can provide high-quality, ultra-low frequency extension for BUTTERFLY Fa series products, with a frequency response lower limit reaching 35Hz. The meticulously optimized overall system delivers pure and powerful ultra-low frequencies; combined with BUTTERFLY's exclusive golden-ratio grille division technology, the product achieves an overall grand and practical design.
The Fa-118SUB is suitable for large conference halls, multi-function halls, theaters, auditoriums, stadiums, clubs, disco halls, and performance halls—including large conference halls, multi-function halls, theaters, auditoriums, stadiums, clubs, discos, and performance halls.



Fa218SUB SERIES

Fa218SUB SERIES 分类: [Fa SERIES]

￥0.00 ￥0.00
The Fa-218SUB features a high-quality cabinet paired with a slot-and-wedge joint process, which enhances the structural sturdiness of the cabinet. Its exclusive Italian reinforcement technology effectively reduces unnecessary resonance and harmful sound coloring of the cabinet, resulting in cleaner sound and higher overall output efficiency.
The Fa-218SUB can provide high-quality, ultra-low frequency extension for BUTTERFLY Fa series products, with a frequency response lower limit reaching 35Hz. The meticulously optimized overall system delivers pure and powerful ultra-low frequencies; combined with BUTTERFLY's exclusive golden-ratio grille division technology, the product achieves an overall grand and practical design.
The Fa-218SUB is suitable for large conference halls, multi-function halls, theaters, auditoriums, stadiums, clubs, disco halls, and performance halls—including large conference halls, multi-function halls, theaters, auditoriums, stadiums, clubs, discos, and performance halls.
