Fs110 SERIES

The Fs series speakers are a brand-new integrated system launched by BUTTERFLY. The entire system consists of single 10-inch, single 12-inch, single 15-inch full-range speakers, as well as single 18-inch and dual 18-inch subwoofers. Among them, the single 10-inch and single 12-inch full-range speakers are designed as rear-ported built-in two-way audio systems, intended for speech and music sound reinforcement applications that require low-frequency compensation but do not need additional subwoofers for compensation. They are also suitable for various fixed installation scenarios.

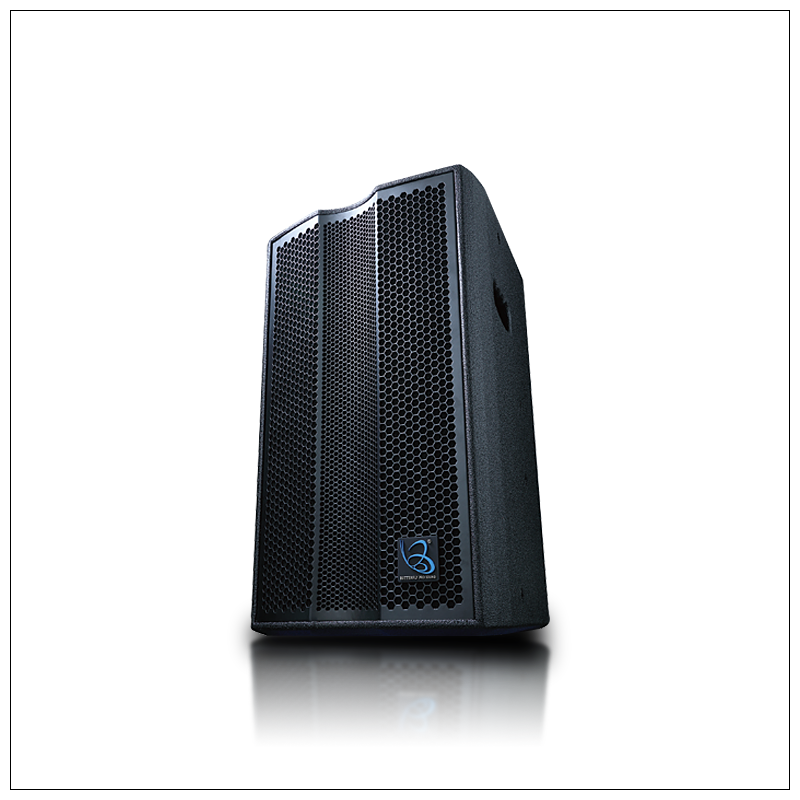

The Fs-110 is composed of a 10-inch direct-radiating mid-low frequency paper cone unit and a 1.75-inch (44mm) high-frequency titanium diaphragm compression driver, with a coverage angle of 90°x75° and a maximum peak sound pressure level of 127dB. It incorporates a built-in passive crossover that does not use attenuation resistors, thus avoiding the problem of resistor heating under high-power conditions and eliminating the impact of attenuation resistor inductance on high-frequency bands. Meanwhile, it increases the damping factor of the system and the efficiency of the speaker.

售价:

￥0.00

产品详情

Product Specifications

Type : Built-in 2-way full-range system
Frequency response : 65Hz - 20kHz (±10dB)
Power handling AES : 350W
Peak power : 1400W
Sensitivity : 96dB
BContinuous sound pressure : 122dB
Max sound Pressure : 127dB
Dispersion : 90°x 75°
Low frequency : 1×10” (254mm)
High frequency : 1×1.75” (44mm)
Nominal impedance : 8 Ω
Input connectors : 2 × Neutrik™ NL4MP
Box Structure : Trapezoidal cabinet
Box material : Multi-layer birch plywood
Finish : Black matte polyurea paint finish
Metal treatment : High-temperature baking paint finish
Face mask Material : Steel grille + dust cover/mesh cloth
Lifting way : 12×M10 suspension points (lifting rings)
Box Size : 335mm × 535mm × 310mm
Weight : 17kg
Recommended Amplifiers : 600W - 800W/8Ω
